Looking to unlock more horsepower from your 5.3L LS engine? There is a wide selection of aftermarket intake manifolds for the 5.3 Chevy LS engine, with options suited for both street builds and performance upgrades. Many of these intake manifolds can be found and purchased online, often with estimated shipping dates provided at the time of order. The intake manifold is one of the most impactful upgrades you can make—and understanding your engine's application and the area where you want to find performance gains is key to choosing the right intake. In this comprehensive guide, we compare the top 5.3 LS intake manifolds, including dyno-tested results, pricing, design differences, and real-world performance gains to help you understand how to find the best intake for your specific build.
What Is the Purpose of a 5.3 LS Intake Manifold?
The intake manifold distributes airflow evenly to all eight cylinders of your 5.3L LS engine. To achieve optimal performance, it’s important to understand how intake manifold design and its application affect power output and drivability for your specific engine build. Its design directly impacts:
Performance Factor | Impact |
|---|---|
Horsepower | Optimized runner length & plenum volume boost peak HP |
Torque | Runner diameter/taper affects low-end vs. high-RPM torque curve |
Throttle Response | Larger throttle body ports improve airflow immediacy |
Airflow Efficiency | Smoother internal channels reduce restrictions |
Fuel rails are an integral part of multi-port fuel injection systems and are often included or required with aftermarket intake manifolds to ensure proper fuel delivery.

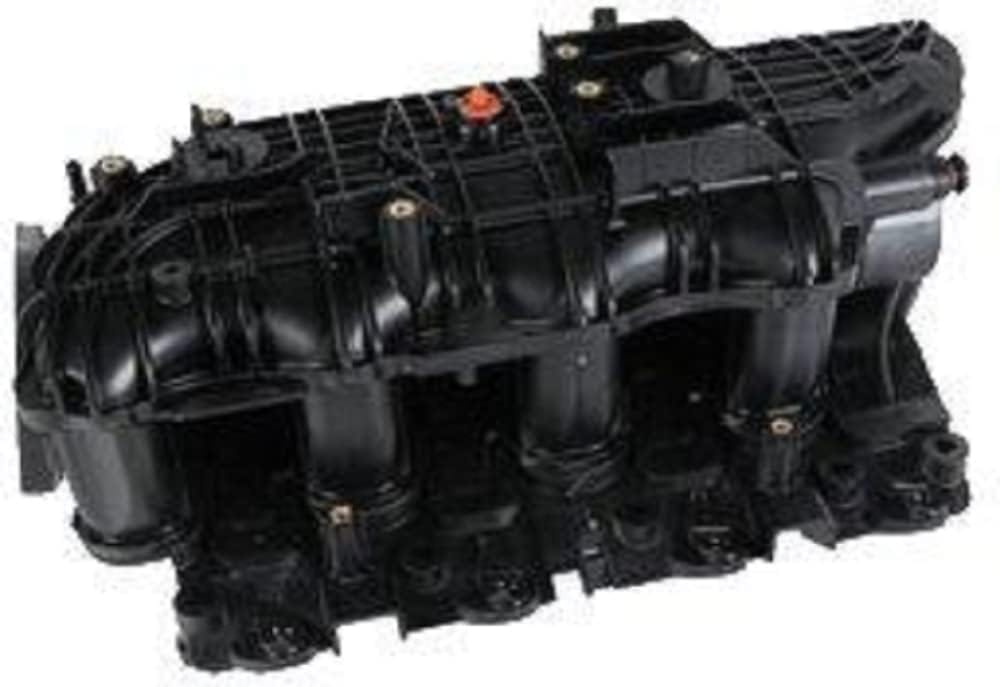

The factory truck intake (LM7/LMG) is surprisingly capable, flowing well up to ~550 NA hp, but aftermarket options like the FAST LSXR/LSXRT and TBSS (Trailblazer SS) intake can squeeze out extra power—especially on cammed builds.
Top 5.3 LS Intake Manifold Comparisons

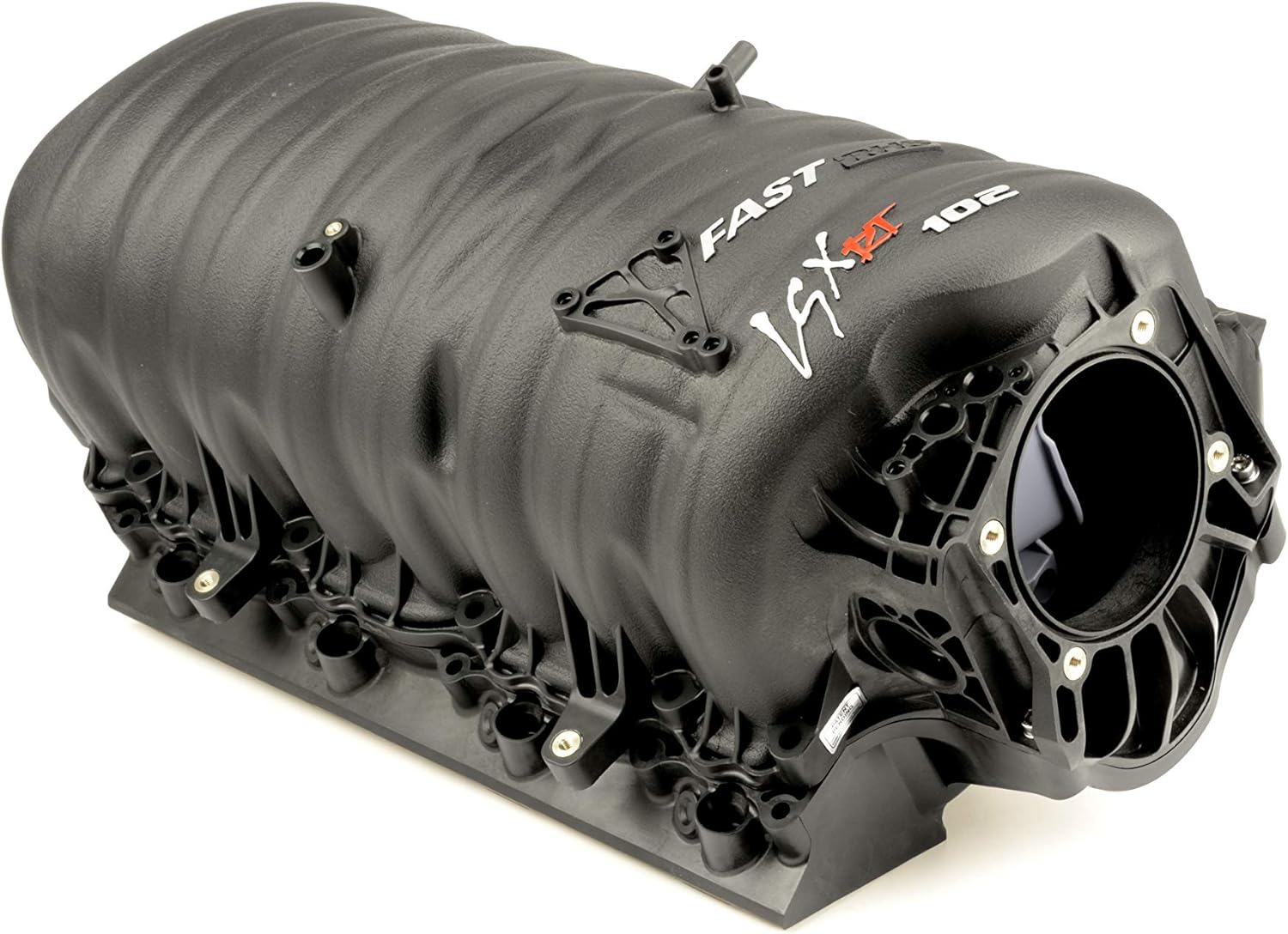

FAST LSXRT 102mm Intake Manifold (Best Overall Performance)
Purpose: High-horsepower street/strip builds with camshaft upgrades
Performance Gains:
- +24–28 hp and +6–8 lb-ft torque on cammed 5.3L L33 tests
- Peak gains occur above 5,000 RPM
- Produced 492 hp at 7,100 rpm in MotorTrend’s dyno shootout
- The FAST LSXR intake is recognized for increasing peak power in 5.3L LS engines while maintaining performance in the same RPM range as stock manifolds.
Design Features:
- 102mm air inlet (pairs with FAST Big Mouth throttle body)
- Advanced polymer composite (lighter, stronger, better heat dissipation than aluminum; restricts heat transfer from the engine to the intake air, resulting in cooler, denser air for improved combustion)
- Integrated nitrous bungs
- Compatible with cathedral port heads (LS1, LS6, LS2, 5.3L L33/LM7)
- Works with stock 90mm/92mm throttle bodies
- Available in both black finish and natural (raw aluminum) options for custom styling preferences
Price: $1,150–$1,250 new
Best For: Builds with cam, headers, and tune pushing 450+ hp
[image:FAST LSXRT intake manifold on 5.3L LS engine]
TBSS (Trailblazer SS) Intake Manifold (Best Budget Pick)
Purpose: The Trailblazer SS (TBSS) intake is a common upgrade for 5.3L Chevy LS engines, along with the LS6 intake, due to their improved airflow over stock truck manifolds. It’s a budget-friendly upgrade for mild-to-moderate builds, making it easier to match the right intake to your application thanks to its wide selection of affordable options.
Performance Gains:
- +9 hp and +5 lb-ft over early truck intake on cammed 5.3L
- +12–13 hp on 6.0L tests, consistent gains 4,500–7,000 RPM
- Tests show TBSS beats LS1, LS2, LS6, and early truck intakes
Design Features:
- Larger 90–92mm throttle body opening
- Short-runner design optimized for mid-to-high RPM power
- Fits under stock hood (low-profile)
- Aluminum construction, factory GM part
Price: $115–$250 new on Amazon; ~$150 used
Best For: Stock-to-mild cam builds, LS swaps, budget-conscious enthusiasts seeking the right selection for their specific application

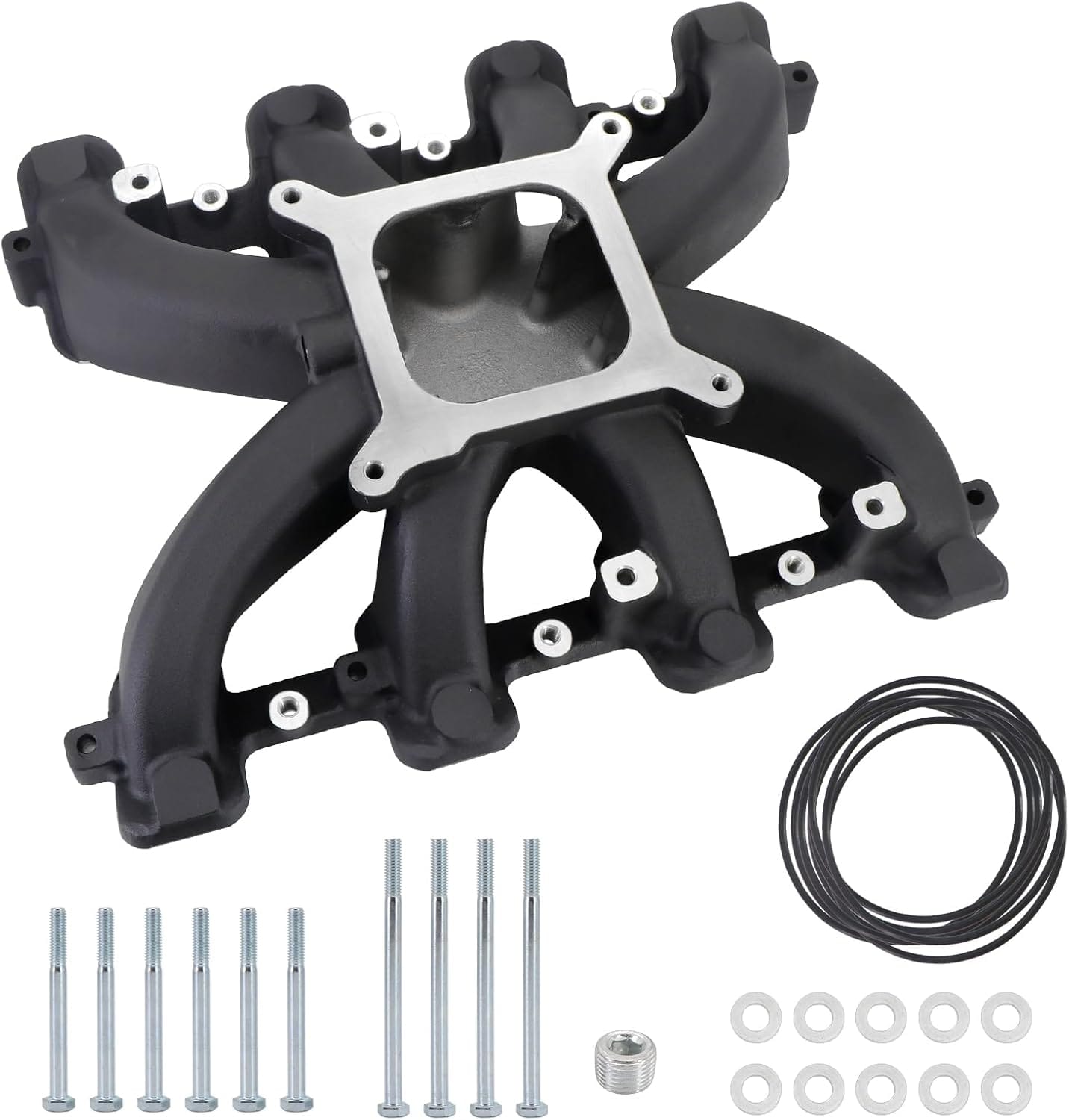

Amazon Budget Carbureted Intakes (Single/Dual Plane)
Purpose: Carbureted LS swaps on a tight budget
Performance:
- Cheap aluminum single/dual plane (300-132/300-130 style)
- Can kill 60–80 lb-ft torque at 2,500–3,000 RPM if mismatched
- Choosing the wrong intake for your application can cause you to lose power, especially in certain RPM ranges.
- Quality varies widely; Some reinterpret Holley/Edelbrock designs
Design:
- Single-plane: High-RPM power, loses low-end torque
- Dual-plane: Better street drivability
- Short-runner intakes like the Holley Sniper and Hi-Ram are best suited for high-RPM applications, trading low-end torque for higher peak power.
- 4150 square bore, cathedral port
Price: $104–$130 on Amazon/eBay
Best For: Budget carbureted swaps, show cars, low-strut street builds
⚠️ Warning: Many Amazon intakes have port sizes only half as large as rectangular port heads—verify compatibility.
Performance Dyno Results Summary
Intake | Horsepower (Peak) | Torque (Peak) | RPM Where Gains Occur | Test Engine |
|---|---|---|---|---|
FAST LSXRT + 102mm TB | 492 hp @ 7,100 rpm | 422 lb-ft @ 5,800 rpm | 4,500+ RPM | Cammed 5.3L + TFS heads |
TBSS + 90mm TB | 473 hp @ 6,800 rpm | 419 lb-ft @ 5,300 rpm | 4,500–7,000 RPM | Same as above |
Early Truck + TB | 464 hp @ 6,900 rpm | 414 lb-ft @ 5,300 rpm | Baseline | Same as above |
FAST LSXR (102mm) | 480.7 hp @ 6,400 rpm | 416.7 lb-ft @ 5,600 rpm | 5,000+ RPM | L33 + Red Hot cam |
Stock Truck Intake | 456.5 hp @ 6,300 rpm | 411.7 lb-ft @ 5,100 rpm | Baseline | Same as above |
Source: MotorTrend & OnAllCylinders dyno tests
A lot of horsepower and torque can be found by upgrading the intake manifold and focusing on the induction area of your 5.3 Chevy LS engine. These results show how improvements in this area can unlock significant performance gains.
Design Differences That Matter
Feature | FAST LSXRT | TBSS | LS2 | Early Truck |
|---|---|---|---|---|
Material | Polymer composite | Aluminum | Aluminum | Composite/Aluminum |
Throttle Body | 102mm | 90–92mm | 90mm | 90mm |
Runner Length | Optimized for mid-high RPM | Short-runner, wide range | Medium | Long |
Weight | Lighter than aluminum | Medium | Medium | Medium |
Heat Dissipation | Superior (polymer) | Good | Fair | Fair |
Hood Clearance | May require clearance | Fits stock hood | Low-profile fits | Fits stock hood |
Note: Truck manifolds are about 4-5 inches taller than car-style intakes, which can cause fitment issues in car swaps. Careful selection of your 5.3 Chevy LS intake manifold for your specific application is crucial to ensure proper hood clearance and optimal performance.
FAQs: 5.3 LS Intake Manifold
1. How much horsepower does a new intake manifold add to a 5.3 LS?
On a cammed 5.3L, the FAST LSXRT adds 24–28 hp and 6–8 lb-ft torque, mostly above 5,000 RPM. The TBSS adds 9–13 hp on similar builds. On stock engines, gains are minimal (< 5 hp), so it’s not worth the cost unless you’re upgrading other components. After upgrading your camshaft and supporting mods, remember there’s still more power waiting to be unleashed by optimizing the intake manifold.
2. Is the TBSS intake better than the factory truck intake?
Yes. The TBSS beats the early truck intake, LS1, LS2, and nearly matches the LS6 for flow. It's considered the best budget upgrade for LS swaps.
3. Will a FAST LSXR fit under my stock truck hood?
Maybe. The FAST LSXR is taller than stock intakes. Trucks with stock hoods may need clearance work or a raised hood. Cars (Mustang, C5/C6) usually fit fine.
4. Do I need to tune my engine after swapping the intake?
Recommended, especially for FAST LSXRT/LSXR. Larger throttle bodies and different runner lengths change airflow characteristics. A tune optimizes timing and fuel tables for the best results. TBSS on stock engines may run fine without tuning.
5. Can I use a 92mm throttle body on the FAST LSXRT?
Yes. The FAST LSXRT accepts 90mm, 92mm, and 102mm throttle bodies, though 102mm is optimal for max power.
6. Are Amazon intake manifolds worth it?
Only for carbureted swaps on tight budgets. Quality varies, and many knockoffs have undersized ports that kill low-end torque. For fuel-injected builds, stick with TBSS (new on Amazon for $115) or reputable brands.
7. What intake should I buy for a stock 5.3L daily driver?
Keep the factory intake or replace it with a used TBSS or LS2 if yours is cracked. On stock engines, intakes don't add meaningful power without cam, headers, and tune.
8. Cathedral port vs. rectangular port: which intake do I need?
Most 5.3L truck engines (LM7, LMG, L33) use cathedral port heads. Confirm your head type before buying. Rectangular port intakes (LS3/LT1) won't fit cathedral heads without adapters.
Final Thoughts: Which 5.3 LS Intake Manifold Should You Buy?
Your ideal intake depends on your build level and budget: gearheads are always searching for the best selection of intake manifolds to match their application and maximize power. Remember, choosing the wrong manifold for your application can reduce drivability, especially in heavy trucks. Always consider your specific engine build and performance goals when selecting a 5.3 Chevy LS intake manifold. Order today!
Bottom Line: For most 5.3L owners, the TBSS intake is the best bang-for-buck upgrade, delivering real power gains without breaking the bank. If you're building a high-horsepower street/strip monster with a cam and tune, the FAST LSXRT is worth the investment for those extra 20+ horsepower.
